Product Specification

GPS type: Receiver & Antenna

Brand Name: SKYLAB

Model Name: SKW71

Name: 802.11b/g/n AP/Repeater & UART WIFI Module

Dimension: 45(L) x 17.3(W) x 9.0(H)

Power voltage: 3.3V

Mode: support AP mode and client mode and repeater mode and UART wifi

Compliant to: Compliant to IEEE 802.11b/g/n 1x1WLANs

Security: WEP 64/128, WPA,WPA2,TKIP,AES,WAPI

Maximum data rate: 150Mbps

Transmission distance: ABOUT 150M

Master chip: AR9331

Company: SKYLAB

Description:

 logo

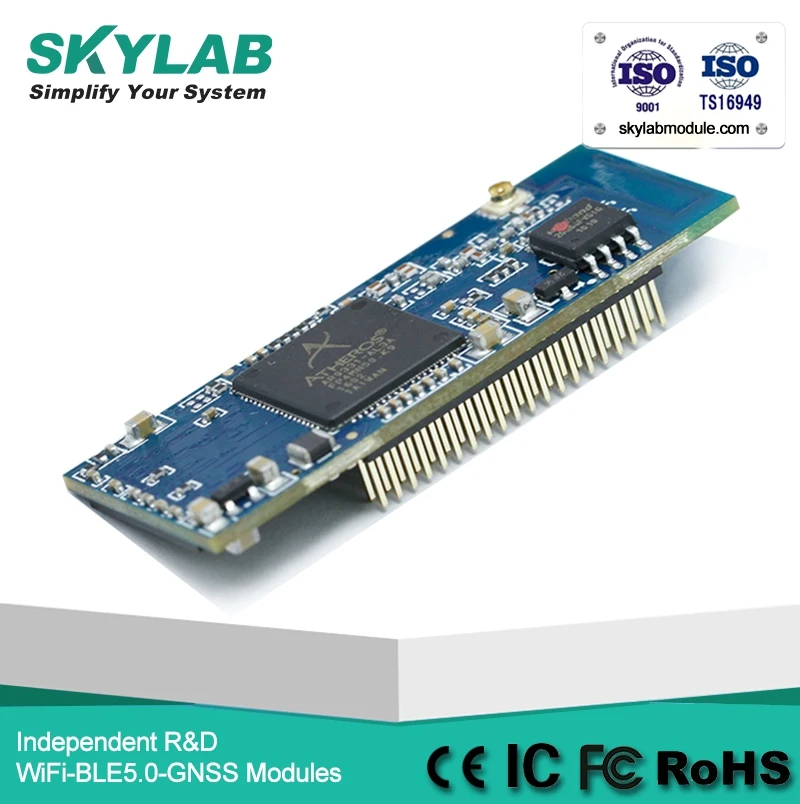

1-Product-Description

Name: 802.11b/g/n Access Point/Router WiFi module based on AR9331

Model No.: SKW71

The module SKW71 compliant to 802.11 b/g/n Wi-Fi Solution for low power, low-cost, and highly integrated AP and consumer electronic devices, the module requiring only a external 3.3V power supply and connection to antenna.
The module based on the single chip AR9331 which integrates an 802.11n 1x1 MAC/BB/radio with internal PA and LNA. It supports 802.11n operations up to 72 Mbps for 20 MHz and 150 Mbps for 40 MHz channel respectively, and IEEE 802.11b/g data rates.
The module support AP mode and client mode and repeater mode and UART wifi.


2- Highlights

Compliant to IEEE 802.11b/g/n 1x1WLANs
DDR2 memory up to 512Mb
Flash memory up to 64Mb
1LAN ports and 1 WAN port
High-speed UART
USB 2.0 host device mode support
Support AP/Client/Repeater mode
Support UART to wifi transparent
Security: WEP 64/128, WPA, WPA2, TKIP, AES, WAPI
RoHS compliance meets environment-friendly requirement.

Performance Specification

Hardware Features

Model

SKW71

Antenna Type

     IPEX connector  or PCB antenna

Chipset solution

AR9331

Voltage

3.3.0V+/-10%

Dimentions(W×D)

45mm*17.3mm

Wireless Features

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency Range

2.400GHz---2.4835GHz

Data Rates

 IEEE 802.11 b Standard Mode: 1,2,5.5,11Mbps



 IEEE 802.11g Standard Mode: 6,9,12,18,24,36,48,54Mbps



 IEEE 802.11n :  65Mbps @ HT20



               150Mbps @ HT40

Receiver Sensitivity

 135M:    [email protected]% PER(MCS7)



 72.2M:    [email protected]% PER(MCS7)



  54M:    [email protected]% PER



                     11M:      [email protected] 8% PER

Modulation Technique

802.11 Legacy b/g



DSSS (DBPSK, DQPSK, CCK)



OFDM (BPSK, QPSK, 16-QAM, 64-QAM)





Wireless Security

WPA/WPA2, WEP, TKIP, and AES

Transmit Power

IEEE 802.11n:      12dBm @HT40 MCS7



[email protected] MCS7



IEEE 802.11g:      14dBm



IEEE 802.11b:      17dBm

Work Mode

Ad-Hoc / Infrastructure mode/AP/Repeater/UART

3- Interface

SKW71 pin

4- Package

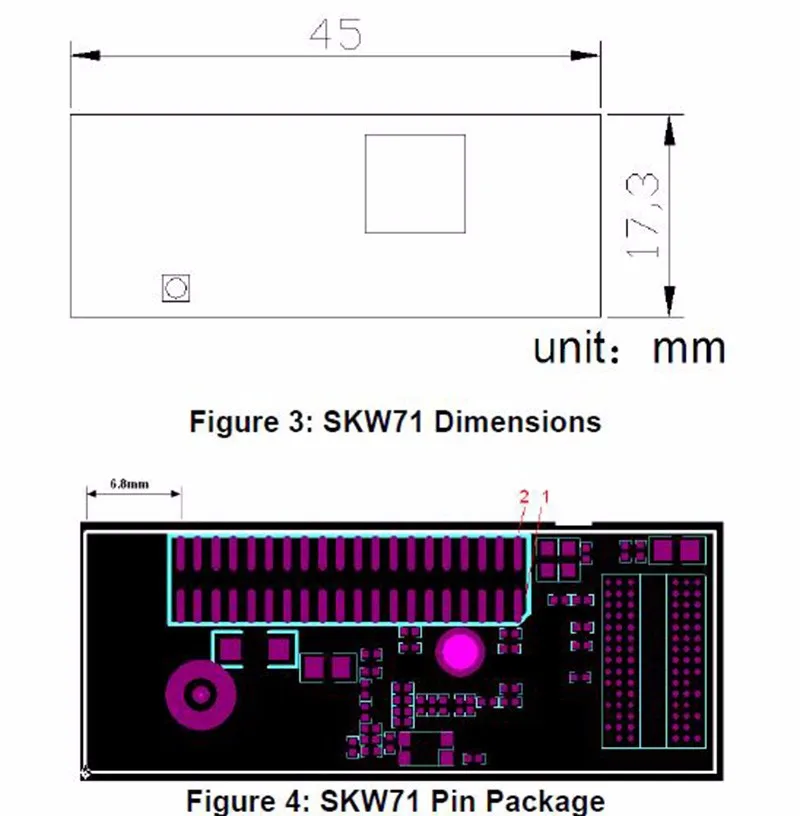

Dimension: 45(L) x 17.3(W) x 9.0(H) mm


SKW71SKW71-1
