30 : 30leds/m
60 : 60leds/m
144 : 144leds/m
IP30: Non- waterproof
IP67: Waterproof in SiliconTube

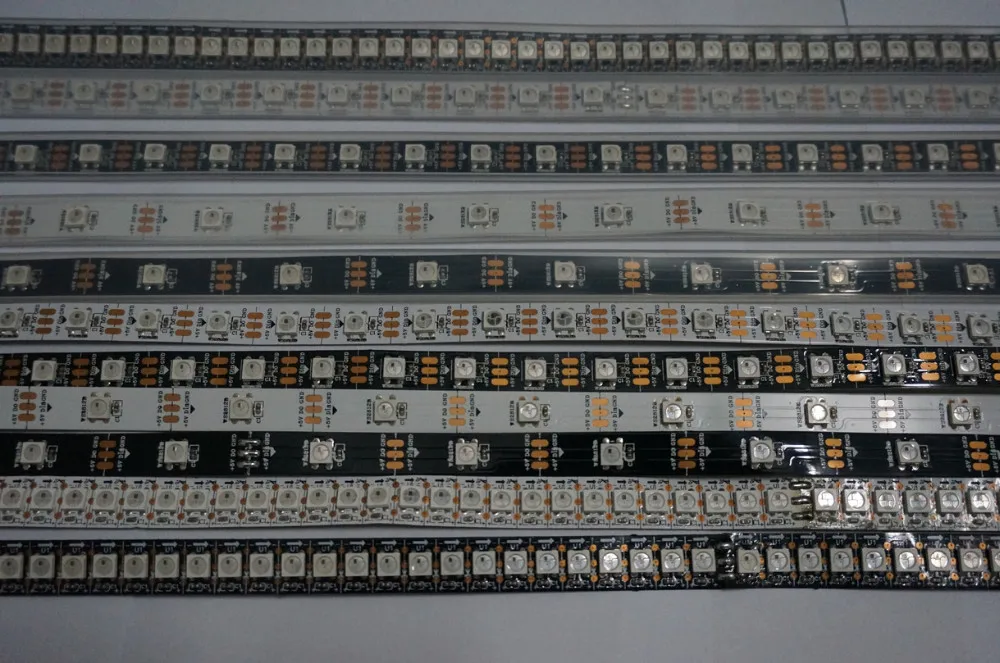

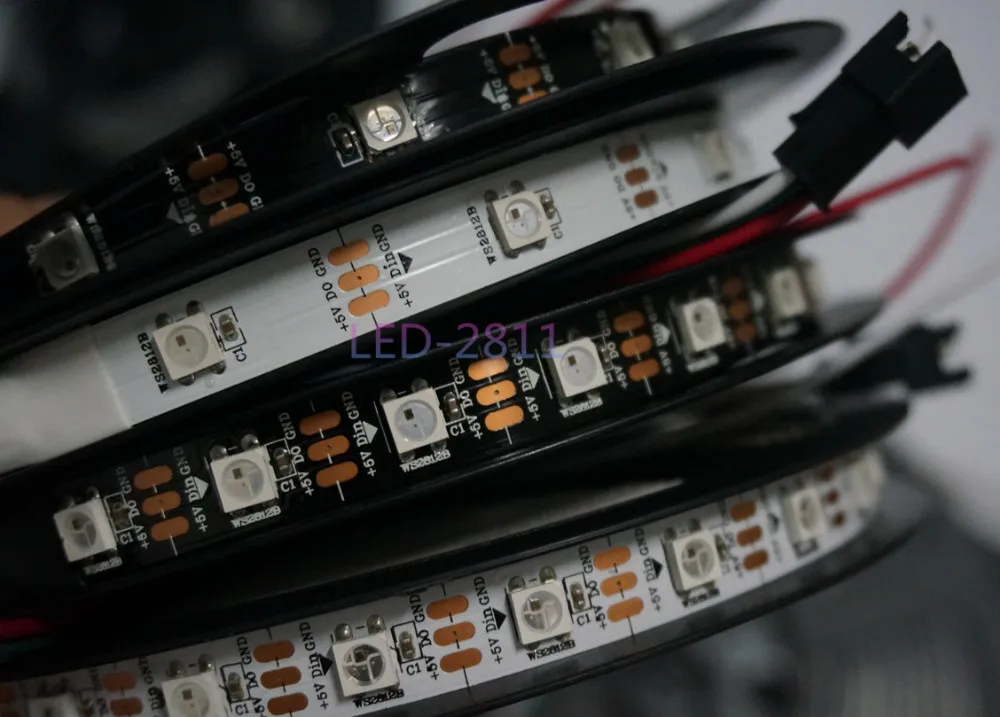

Product Type: WS2812-30LEDs / 1M, 60 LEDs / 1M, 144 LEDs / 1M
Light source: SMD 5050 LED
Chip: Epistar chip
IC Model: WS2811, (1 meter 30 IC, 1 meter 60 IC, 1 meter 144 IC, 1 IC control 1 LED)
Grayscale: 256, (1 m 30/60/144 pixels);
Number of LED: 30 lights / meter, 60 lights / meter, 144 lights / meter, each for a group of lights, you can cut
Beam angle: 180 °
Luminous color: can be adjusted by the controller, white, red, yellow, blue, green, RGB, etc .;
Standard working voltage: DC 5V
Power: 9W ± 10% / m; 18W ± 10% / m; 43.2W ± 10% / m
Waterproof grade: IP30 / IP67
FPCB board size: Width: 10mm (30 lights, 60 lights) 12mm (144 lights), thickness: 3mm
FPCB Color: white, black
Our company has matching Symphony controller and power supply, welcome to buy.
1, the control principle: an IC control a LED form a loop (a group), the controller through the control IC FPCB inside the circuit to control the LED strip changes in different effects; such as flashing, chasing, jumping, Clockwise horse race, counter-clockwise horse race, monochrome horse race, color horse race, single chase from start to finish, running water, simulated lightning, etc .; this section of light changes effect is not limited to the controller built-in 300 kinds of effects, according to customer needs , Self-prepared; Pai screen can display the form, text, letters, pictures, animations, and so on.
2, environmental safety: the use of high-quality highlight SMD 5050 LED. Has a small power consumption, heat generated, no glare, impact resistance and so on. Low voltage DC 5V power supply, high safety and reliability.
3, rich and varied colors according to customer needs through the controller to adjust.
4, long life expectancy: the average life expectancy of 50,000 hours.

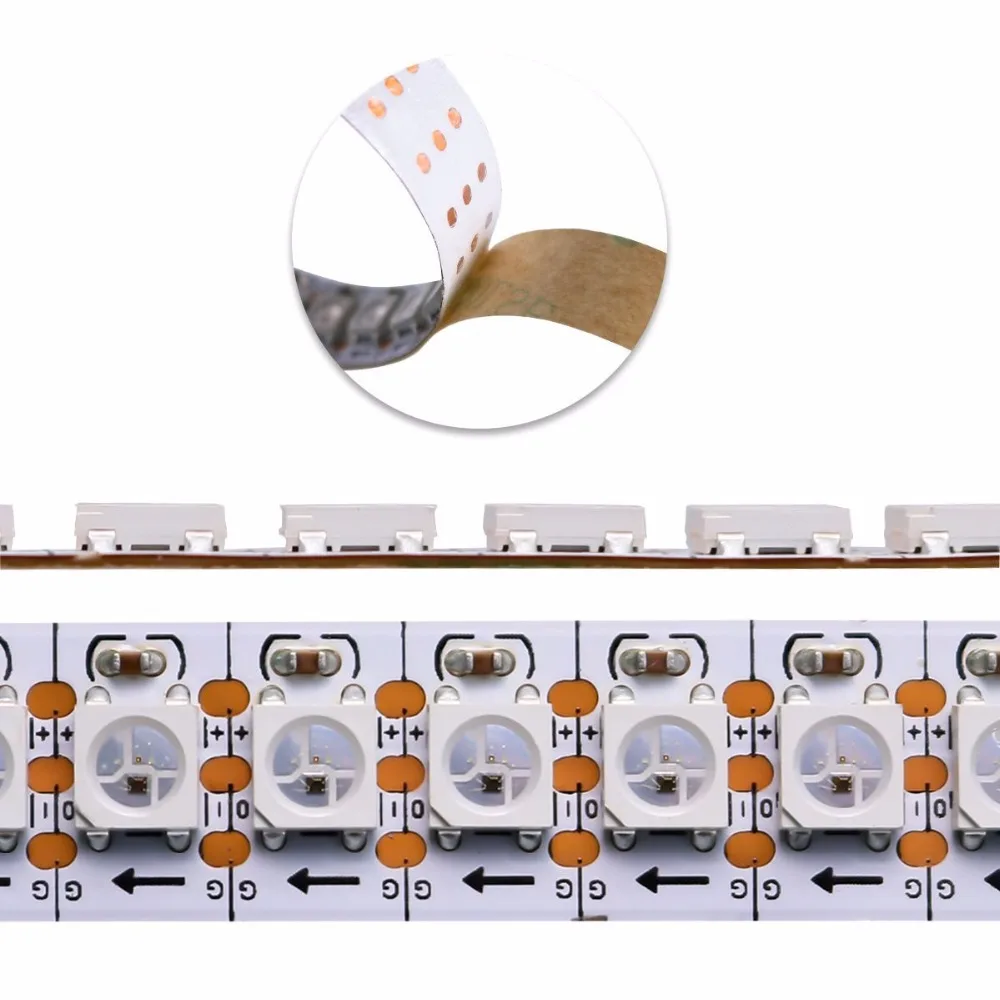

5, cutting, welding easy and free: Each group of LED can be composed of a loop, you can cut along the top of any truncated and welded to meet the various requirements of the length of the light bar.
6, soft: the use of flexible FPCB board as the substrate, butt, bending, cutting and any fixed in the uneven surface.
7, light, thin: suitable for installation in a narrow space inside.
1, hotel / nightclub / KTV and other places of polygonal wall, water droplets ceilings, decorative decorating atmosphere;
2, buildings, advertising walls, signs, festivals and other decorative areas of the United States from the city / light effect;
3, home decoration lighting (stairs, door frames, bar, wine cabinet, wardrobe, TV cabinet, DIY home decoration ...);
4, car beauty (car body, car bottom ...);
5, with landmark building buildings pavilions, bridges, parks and other contours of the outline, from the embellishment of lighting effects.
6, lighting signals (such as a variety of luminous instructions)
7, Edge-Lighting transparent or diffuse material
8, support for underwater lighting project
9, canopy and arch edge / amusement park / theater / aircraft cockpit lighting
1, indoor installation: LED lights for indoor installation is relatively simple, because do not have to withstand the wind and rain. When installing, you can directly tear off the sticker on the surface of 3M double-sided tape on the back of the light bar, then fix the light bar on the place where you need to install and press flat. If you encounter corner or light bar is too long and too short, LED lights with a scissors in each group of tangent at any cut or welded to use alone.
2, outdoor installation: outdoor installation will withstand the wind and rain, 3M plastic can not be fixed, so often used outdoor installation card slot fixed way, the need to cut and connect the place, the same method and indoor installation, but need additional equipment Waterproof plastic, in order to consolidate the waterproof connection point.
3, the power connection method: LED Symphony with DC voltage DC5V general, so the need to use the switching power supply, the size of the power supply according to the power LED lights and connection length to be set.
4, the controller connection: LED Marquee and RGB full-color lights with the need to use the controller to achieve change effect, and the control of each controller is not the same, in general, simple controller control distance of 10 to 15 meters, remote control of the control distance of 15 to 20 meters, the longest can be controlled to 30 meters distance. If the LED strip with a longer connection distance, and the controller can not control that long strip, then you need to use the power amplifier to tap.
